System Super 1.5EZ Cyclorama Wall w/ 18 inch Cove

click image to enlarge
more images System Super 1.5QS cyc wall green screen at the Ross Video Booth at NAB 2015 System Super 1.5EZ at T-Mobile in Bellevue, WA (Photo Courtesy of T-Mobile)

18” Vertical Radius, 24” Horizontal Radius with 12” Flat Expansion in Corner

With the increase in the number of smaller virtual studios being installed around the world, the demand for Pro Cyc’s fiberglass System 1.5EZ has been on the rise.  In reaction to this growing trend, we developed our new System Super 1.5EZ made out of High-Impact ABS Plastic.  This is the same tried-and-true material Pro Cyc uses to make System 3EZ, System Super 3EZ, System 4BI, System 4FS and System 4QS.

Although System 1.5EZ will remain available, the advantages of System Super 1.5EZ are as follows:

  • System Super 1.5EZ is less costly than System 1.5EZ. The degree of savings will vary depending on the size and shape of the cyclorama walls.
  • System Super 1.5EZ modules will be easier to install because they include pre-drilled holes for quick assembly.
  • System Super 1.5EZ includes a 12” flat expansion in the middle of the 24” horizontal corner radius; so consistent lighting should be easier and sound reflection less of a concern.

The EZ trim installation allows you to build a cyc wall extension into your existing wall with very little invasive construction. The transition from floor-to-wall and/or wall-to-wall is smooth and requires very little space. Because the corner is non-parabolic with a 12” flat center expansion, it reduces noise reflection and provides a longer sweep horizontally for smoother lighting. However, because of the small radius this cyc is not the solution for everyone. Please give us a call if you are not familiar with its applications.

All of the modules in System Super 1.5EZ are trimmed and ready to assemble and install into your wall. All Pro Cyc modules have the patented tapered edge for an even transition to adjacent surfaces. This creates an absolutely seamless joint after taping and mudding.

Specifications:

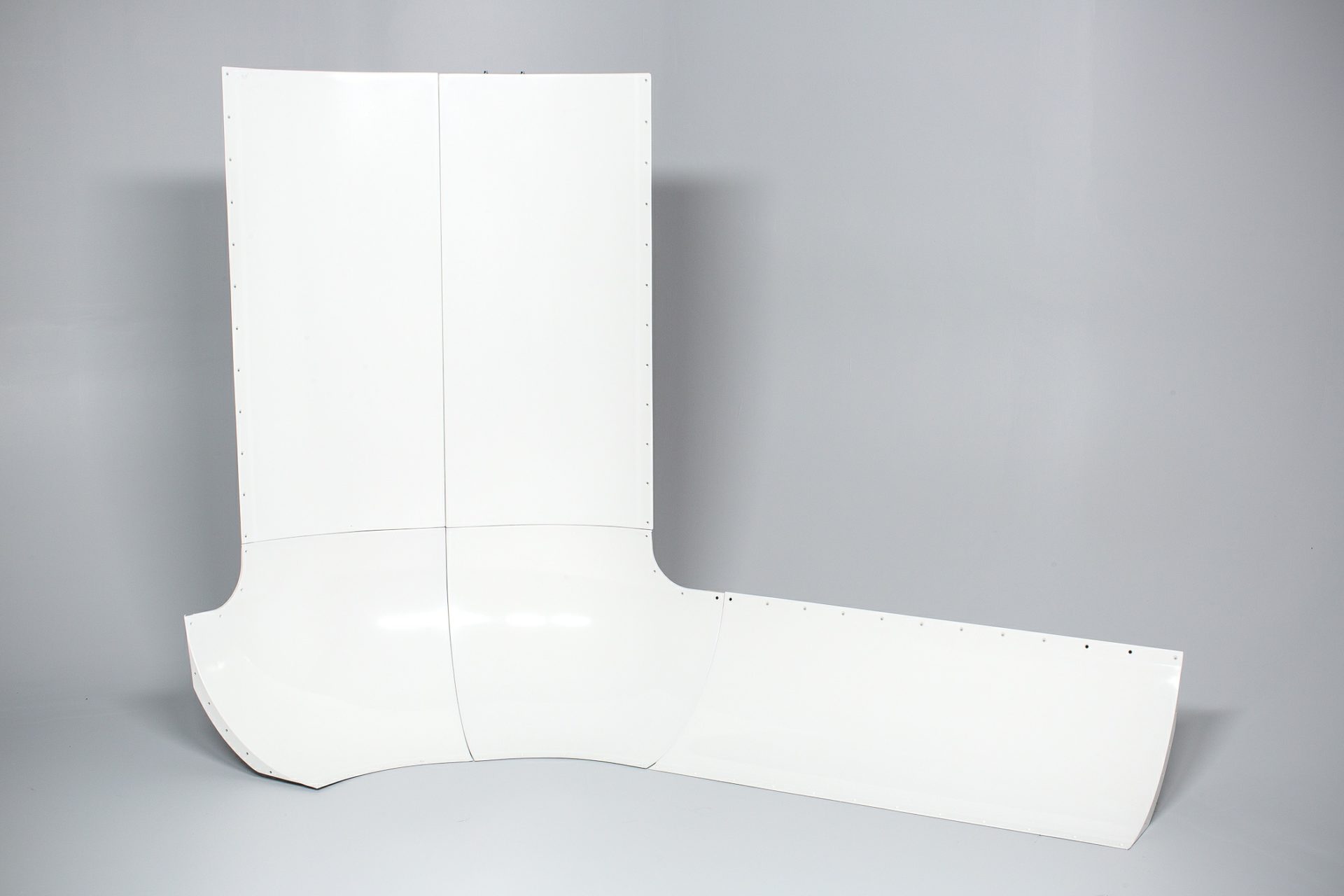

  • Corner Modules: Two 45-degree corner modules make up a 90-degree corner that includes an 18” vertical radius and a 24” horizontal radius with a 12”-wide flat center expansion.
  • Cove Modules:
    • Floor coves – 18” radius x 4’ wide
    • Vertical coves – Two 4’-high 45-degree vertical modules make up a 90-degree 24” horizontal radius with a 12”-wide flat center expansion
  • Material: High Impact ABS Plastic
  • EZ trim installation (built-in only)

Best Uses for System Super 1.5EZ:

  • When space is at a premium and lighting is full and technical

Typical Users:

  • Smaller TV/film/video production studios
  • In-house corporate video production studios
  • Photographers with small studio environments

Clients Who Use This Product:

  • 4Wall Entertainment
  • AFLAC
  • American Dental Association
  • Art Institute of Las Vegas
  • AT&T
  • AT&T-Cricket
  • Babson College
  • Ball State University
  • Beachwood High School
  • Burg Simpson Eldredge
  • Caliber Construction
  • Chat Cat
  • Circulo Blanco
  • Clayton Homes
  • Community Choice Credit Union
  • Conde Nast
  • Contra Costa College
  • Dallas Theological Seminary
  • DePaul University Richardson Library
  • Detroit Free Press
  • ESPN Sports
  • Ethicon Endo-Surgery
  • EventStreams
  • Facebook
  • Faith Lutheran Schools
  • Florida State University
  • Fred Meyer Stores
  • Hamilton College
  • HULU
  • iHeart Media, Inc. (iHeartRADIO)
  • Innovage Warehouse
  • Intuitive Surgical
  • Just Play Products
  • Local Tel Communications
  • LPL Financial
  • Lynch Exhibits
  • Maryville University
  • Media Lab Maine
  • Medical College of Wisconsin
  • Microsoft Corp.
  • Middlesex Community College
  • NFL Network
  • Northwestern University
  • Omnicon Group
  • Oxnard School District
  • Palatine Public Library
  • PEG Media Partners
  • PETCO
  • Portland Community Media
  • Procter & Gamble
  • Rutgers University
  • Sonalysts, Inc.
  • St. Mary’s College of California
  • T-Mobile
  • Tampa Preparatory School
  • Tate’s GMC / Buick
  • The Bleacher Report
  • The Onion
  • The Star Tribune
  • The Street
  • Tri-County Electric Cooperative
  • United States Air Force (USAF)
  • University of Houston Optometry
  • University of Virginia
  • Ventura TV Video Appliance
  • WFLA-TV Channel 8
  • Whirlpool
  • Xceleration Media Group
  • Yelp
  • Zenith Systems, LLC
